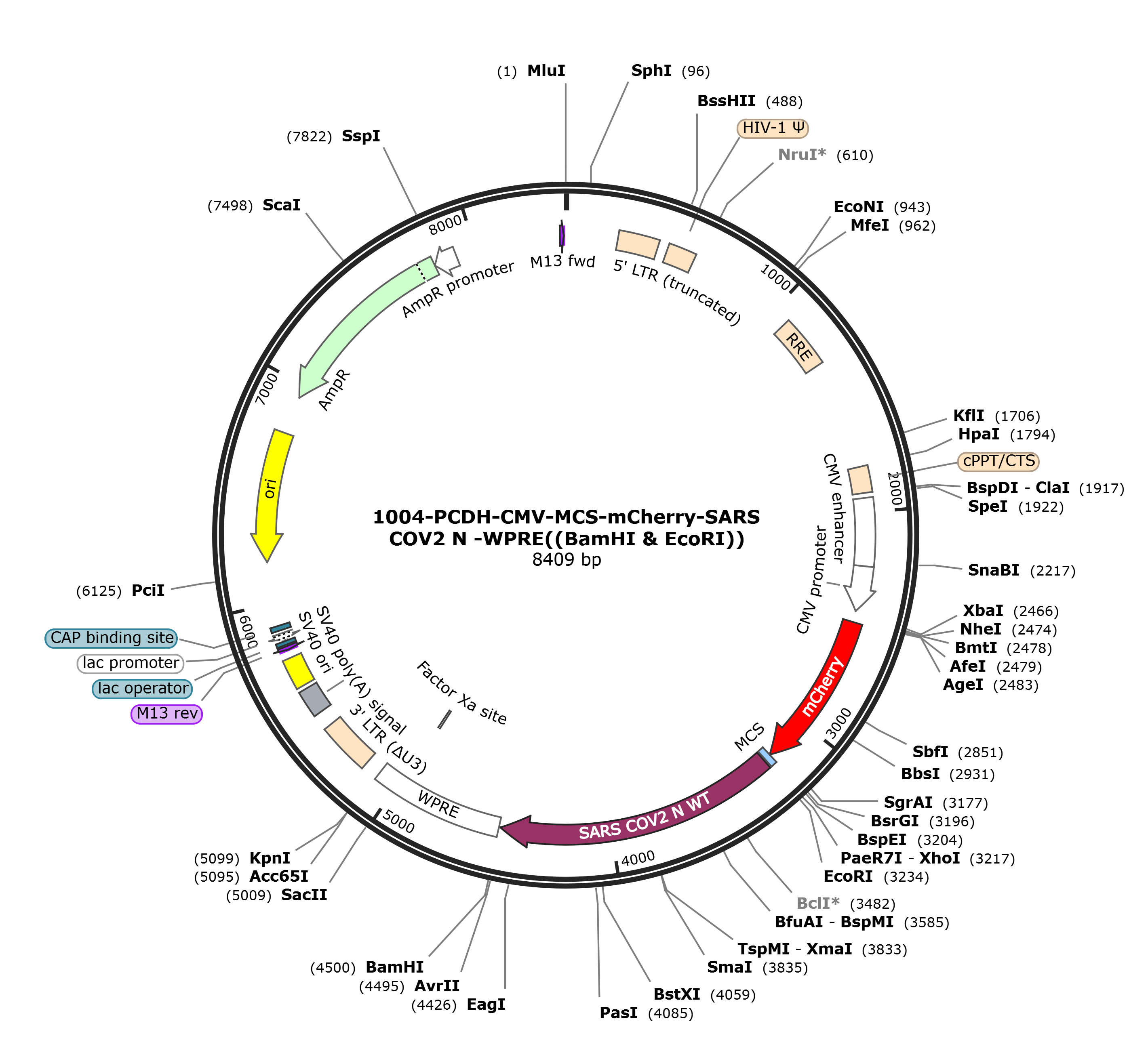

pCDH-CMV-mCherry-SARS CO2_N protein

LOCUS       pCDH-CMV-mCherry-SARS CO2_N protein              8409 bp DNA     circular SYN 16-JUN-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8409)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 3, 2026 from SnapGene 6.0.2
            https://ww.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8409
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     CDS             3240..4499
                     /codon_start=1
                     /label=SARS COV2 N WT
                     /translation="MSDNGPQNQRNAPRITFGGPSDSTGSNQNGERSGARSKQRRPQGL
                     PNNTASWFTALTQHGKEDLKFPRGQGVPINTNSSPDDQIGYYRRATRRIRGGDGKMKDL
                     SPRWYFYYLGTGPEAGLPYGANKDGIIWVATEGALNTPKDHIGTRNPANNAAIVLQLPQ
                     GTTLPKGFYAEGSRGGSQASSRSSSRSRNSSRNSTPGSSRGTSPARMAGNGGDAALALL
                     LLDRLNQLESKMSGKGQQQQGQTVTKKSAAEASKKPRQKRTATKAYNVTQAFGRRGPEQ
                     TQGNFGDQELIRQGTDYKHWPQIAQFAPSASAFFGMSRIGMEVTPSGTWLTYTGAIKLD
                     DKDPNFKDQVILLNKHIDAYKTFPPTEPKKDKKKKADETQALPQRQKKQQTVTLLPAAD
                     LDDFSKQLQQSMSSADSTQA"
     misc_feature    4506..5093
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4977..4988)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5166..5399
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5471..5592
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5611..5746
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5784..5800)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5808..5824
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5832..5862)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5877..5898
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6186..6774)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6945..7805)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7806..7910)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     8384..8400
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgagcgataa tggcccgcag aatcagcgta atgcaccgcg tattaccttt ggtggtccga
     3301 gtgatagtac cggcagcaat cagaatggtg aacgtagtgg tgcacgtagc aaacagcgtc
     3361 gcccgcaggg tctgccgaat aataccgcaa gttggtttac cgcactgacc cagcatggca
     3421 aagaagatct gaaatttccg cgtggccagg gcgttccgat taataccaat agcagcccgg
     3481 atgatcagat tggctattat cgtcgtgcca cccgccgtat tcgtggtggc gatggcaaaa
     3541 tgaaagatct gagtccgcgt tggtattttt attatctggg caccggcccg gaagcaggtc
     3601 tgccttatgg cgccaataag gatggcatta tttgggtggc aaccgaaggc gccctgaata
     3661 ccccgaaaga tcatattggt acacgtaatc cggcaaataa tgccgccatt gtgctgcagc
     3721 tgccgcaggg caccaccctg cctaaaggtt tttatgccga aggtagccgt ggcggcagtc
     3781 aggccagtag ccgcagcagc agtcgcagcc gtaatagcag tcgtaatagc accccgggca
     3841 gtagccgtgg tacaagtccg gcccgtatgg ccggcaatgg cggtgacgca gcactggcac
     3901 tgctgctgct ggatcgcctg aatcagctgg aaagtaaaat gagcggcaaa ggtcagcagc
     3961 agcagggcca gaccgtgacc aaaaaatcag ccgccgaagc aagcaaaaaa ccgcgccaga
     4021 aacgtaccgc caccaaagcc tataatgtga cccaggcctt tggccgtcgc ggccctgaac
     4081 agacccaggg taattttggt gaccaggaac tgattcgcca gggcaccgat tataaacatt
     4141 ggccgcagat tgcacagttt gcaccgagcg ccagcgcatt tttcggcatg agccgtattg
     4201 gcatggaagt taccccgagt ggcacctggc tgacctatac cggcgcaatt aagctggatg
     4261 ataaagatcc gaattttaaa gatcaggtta ttctgctgaa caaacatatt gatgcctata
     4321 aaaccttccc gccgaccgaa ccgaaaaaag ataaaaagaa aaaggccgat gagacccagg
     4381 ccctgccgca gcgtcagaaa aaacagcaga ccgtgacact gctgccggcc gccgatctgg
     4441 atgattttag caaacagctg cagcagagca tgagtagtgc agatagtacc caggcctagg
     4501 gatccaatca acctctggat tacaaaattt gtgaaagatt gactggtatt cttaactatg
     4561 ttgctccttt tacgctatgt ggatacgctg ctttaatgcc tttgtatcat gctattgctt
     4621 cccgtatggc tttcattttc tcctccttgt ataaatcctg gttgctgtct ctttatgagg
     4681 agttgtggcc cgttgtcagg caacgtggcg tggtgtgcac tgtgtttgct gacgcaaccc
     4741 ccactggttg gggcattgcc accacctgtc agctcctttc cgggactttc gctttccccc
     4801 tccctattgc cacggcggaa ctcatcgccg cctgccttgc ccgctgctgg acaggggctc
     4861 ggctgttggg cactgacaat tccgtggtgt tgtcggggaa gctgacgtcc tttccatggc
     4921 tgctcgcctg tgttgccacc tggattctgc gcgggacgtc cttctgctac gtcccttcgg
     4981 ccctcaatcc agcggacctt ccttcccgcg gcctgctgcc ggctctgcgg cctcttccgc
     5041 gtctccgcct tcgccctcag acgagtcgga tctccctttg gccgcctccc cgccggtacc
     5101 tttaagacca atgacttaca aggcagctgt agatcttagc cactttttaa aagaaaaggg
     5161 gggactggaa gggctaattc actcccaacg aaaataagat ctgctttttg cttgtactgg
     5221 gtctctctgg ttagaccaga tctgagcctg ggagctctct ggctaactag ggaacccact
     5281 gcttaagcct caataaagct tgccttgagt gcttcaagta gtgtgtgccc gtctgttgtg
     5341 tgactctggt aactagagat ccctcagacc cttttagtca gtgtggaaaa tctctagcag
     5401 tagtagttca tgtcatctta ttattcagta tttataactt gcaaagaaat gaatatcaga
     5461 gagtgagagg aacttgttta ttgcagctta taatggttac aaataaagca atagcatcac
     5521 aaatttcaca aataaagcat ttttttcact gcattctagt tgtggtttgt ccaaactcat
     5581 caatgtatct tatcatgtct ggctctagct atcccgcccc taactccgcc cagttccgcc
     5641 cattctccgc cccatggctg actaattttt tttatttatg cagaggccga ggccgcctcg
     5701 gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctaga cttttgcaga
     5761 gacggcccaa attcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc
     5821 acaattccac acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga
     5881 gtgagctaac tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg
     5941 tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg
     6001 cgctcttccg cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg
     6061 gtatcagctc actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga
     6121 aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg
     6181 gcgtttttcc ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag
     6241 aggtggcgaa acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc
     6301 gtgcgctctc ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg
     6361 ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt
     6421 cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc
     6481 ggtaactatc gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc
     6541 actggtaaca ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg
     6601 tggcctaact acggctacac tagaaggaca gtatttggta tctgcgctct gctgaagcca
     6661 gttaccttcg gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc
     6721 ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat
     6781 cctttgatct tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt
     6841 ttggtcatga gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt
     6901 tttaaatcaa tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc
     6961 agtgaggcac ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc
     7021 gtcgtgtaga taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata
     7081 ccgcgagacc cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg
     7141 gccgagcgca gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc
     7201 cgggaagcta gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct
     7261 acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa
     7321 cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt
     7381 cctccgatcg ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca
     7441 ctgcataatt ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac
     7501 tcaaccaagt cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca
     7561 atacgggata ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt
     7621 tcttcggggc gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc
     7681 actcgtgcac ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca
     7741 aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata
     7801 ctcatactct tcctttttca atattattga agcatttatc agggttattg tctcatgagc
     7861 ggatacatat ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc
     7921 cgaaaagtgc cacctgacgt ctaagaaacc attattatca tgacattaac ctataaaaat
     7981 aggcgtatca cgaggccctt tcgtctcgcg cgtttcggtg atgacggtga aaacctctga
     8041 cacatgcagc tcccggagac ggtcacagct tgtctgtaag cggatgccgg gagcagacaa
     8101 gcccgtcagg gcgcgtcagc gggtgttggc gggtgtcggg gctggcttaa ctatgcggca
     8161 tcagagcaga ttgtactgag agtgcaccat atgcggtgtg aaataccgca cagatgcgta
     8221 aggagaaaat accgcatcag gcgccattcg ccattcaggc tgcgcaactg ttgggaaggg
     8281 cgatcggtgc gggcctcttc gctattacgc cagctggcga aagggggatg tgctgcaagg
     8341 cgattaagtt gggtaacgcc agggttttcc cagtcacgac gttgtaaaac gacggccagt
     8401 gccaagctg
//
